New Energy Electric Three Wheeled Cleaning Car Garbage Transport Truck

Name: New Energy Electric Three Wheeled Cleaning Car Garbage Transport Truck
Brand: Wuxi Bochi Smart Run Technology Co., LTD.,
SKU: New energy electric three-wheeled 4-barrel vehicle SKBY3600-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Bochi

Model Number: New energy electric three-wheeled 4-barrel vehicle SKBY3600-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 3 sets

Price: Further communication based on product configuration and parameters

Packaging Details: Steel structure packing rack

Delivery Time: 15-30 days

Payment Terms: D/P, T/T

Supply Ability: 3000 sets/months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                1200W Electric Three Wheeled Cleaning Car, 800kg Electric Three Wheeled Cleaning Car, 30km/h garbage transport truck


Rated Passenger Capacity:	1	Overall Dimensions:	338013801280
Maximum Load:	800kg	Top Speed:	30km/h
Cruising Range:	60km	Motor Power:	60V 1200W
Battery Capacity:	60V45AH

Rated Passenger Capacity:	1
Overall Dimensions:	338013801280
Maximum Load:	800kg
Top Speed:	30km/h
Cruising Range:	60km
Motor Power:	60V 1200W
Battery Capacity:	60V45AH

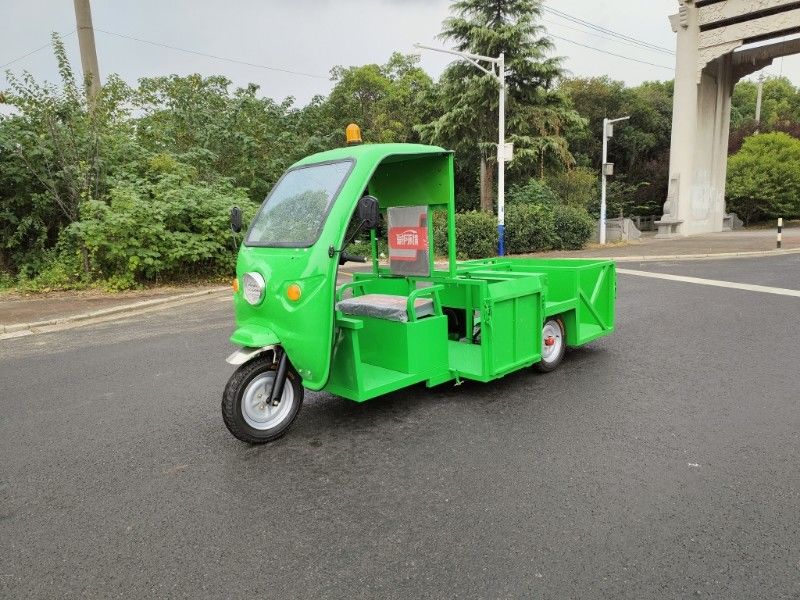

New Energy Electric Three Wheeled Cleaning Car Garbage Transport Truck

New Energy Electric Three Wheeled 4 Bucket Truck Garbage Transport Truck Garbage Bucket Truck SKBY3600-A

Features:

This model is an electric three-wheeled four-bucket hanging bucket truck with a beautiful design. It adopts a tail plate type bucket hanging device, which is solid, solid and durable. Four 240L trash cans can be loaded and unloaded at the same time in the rear compartment, and a full load can pull 800kg. The rear box tail plate is divided into four parts and opens on the left and right sides. The rear tailgate can be opened separately. The tailgate is cleverly designed and equipped with a rubber pad on the back to protect the tailgate during loading. The vehicle has ultra-large capacity and fast transportation speed. It uses a high-power 60V1200W brushless motor and has strong climbing ability.

working area:

Garbage collection and cleaning on sidewalks, commercial streets, urban streets, residential areas, stations, squares, airports, factories, schools, hospitals, parks, etc.

	Project content	240L four-barrel truck
Technical parameters	Overall dimensions (mm)	355015501070
	Rated passenger capacity (person)	1
	Maximum speed (km/h)	20km/h
	Minimum turning radius (m)	≤3
	Maximum gradeability (no load)	25%
	Maximum braking distance (m)	≤4
	Driving mileage (km)	≥60
	Minimum ground clearance (mm)	13.5	Wheelbase (mm)	2330
	Unladen vehicle weight (kg)	200	Wheelbase(mm)	930
Electrical system	battery	60V45AH battery
	charger	60V4.2A,Fully automatic intelligent charger, short charging time and small size
	controller	60V1200W 18 tube controller
	Traction motor	Differential dual drive 60V1200W
move force Hold control	Powertrain	Rear axle dual drive
	switch	Start switch, light combination switch, front and rear reversing switch
	tire	Front 3.75-12, rear 3.75-12
	Foot brake	Pull rod braking, sensitive braking
	handbrake	Equipped with slope parking function, no worries when parking on slopes
	Cleaning bucket loading and unloading	Lower the side or rear door iron plates to load and unload trash cans
Appearance	paint	The entire vehicle uses automotive-grade ordinary paint, computerized paint mixing, and professional spraying equipment.
	seat	Advanced simulated leather fabric + high rebound PU
	lights and signals	Combination headlights, turn signals, combination rear lights, electric horn and reversing buzzer
	color	Optional
