Product Details
Place of Origin: China
Brand Name: Bochi
Model Number: SKBJ3000-G
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 3 sets
Price: Further communication based on specific parameters
Packaging Details: Steel structure frame + color steel plate packing
Delivery Time: 15-30 working days
Payment Terms: D/P,T/T
Supply Ability: 2000 sets/month
Box Volume: |
450L |
Rated Load: |
150kg |
Top Speed: |
30 Km/h |
Range (unladen): |
≥60 Km/h |
Charger: |
48-60V/20-32AH |
Overall Dimensions(L*W*H): |
2520*880*1180 |
Box Volume: |
450L |
Rated Load: |
150kg |
Top Speed: |
30 Km/h |
Range (unladen): |
≥60 Km/h |
Charger: |
48-60V/20-32AH |
Overall Dimensions(L*W*H): |
2520*880*1180 |

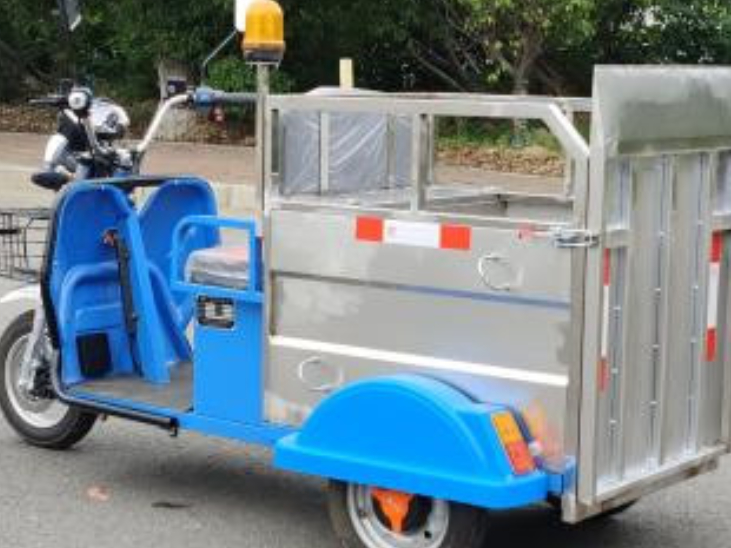

Micro Electric Sanitation Vehicle SKBJ3000-G Technical Specifications
The sanitation cabinet features blue/white 100% PP injection-molded construction with impact, chemical, and corrosion resistance. Its sealed structure incorporates dual-layer lids to prevent leakage during operation. The ≤80° rotatable design enables single-motion waste dumping, with rear bumpers protecting against tipping damage.
The frame employs polyester powder coating with multi-stage anti-corrosion treatment, delivering rustproofing, salt spray resistance, and scratch protection. Quad-braking systems include synchronized rear-wheel parking locks for safety, supplemented by a front storage basket.
LED lighting provides low-heat operation, extended lifespan, and energy efficiency compared to traditional bulbs. The rear axle utilizes dual-drive differential transmission with all-steel gearing for high-torque performance, energy savings, and low noise.
Powered by maintenance-free batteries featuring auto-cutoff charging and short-circuit protection. Honda-inspired front design integrates stainless steel handles, LCD instrumentation, and hydraulic shock absorbers with reflectors. Microcontroller systems optimize energy efficiency through automatic protection protocols.
Product model | SKBJ3000-G | |
Rated occupants | 人 | 1 |
Appearance dimensions (length*width*height) | Mm | 2520*880*1180 |
Box volume | L | 450L |
Curb weight | Kg | 150 |
Rated load | Kg | 150 |
Motor power | W | 550 |
top speed | km/h | 60 |
Battery | 48V | Maintenance-free battery 20/32AH optional |
charger | 48V5-8A | Smart three-stage charger |
Headlight type | LED type | |
rear wheelbase | mm | 810 |
Wheelbase | mm | 1650 |
minimum ground clearance | mm | 120 |
Rated voltage | V | 48 |
Climbing ability | 20% | |
Range (unladen) | Km | ≥60 |
braking distance | m | ≤3 |
turning radius | m | ≤3 |
tire | Wear resistance thickened tires 3.00-10 | |
seat | High-grade simulated leather | |
Frame | National standard carbon steel galvanized pipe |
